Description

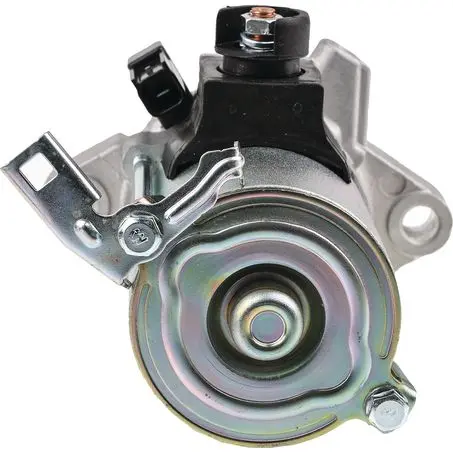

The MXS819 OEX Starter Motor is a high-quality, OEM-equivalent replacement designed for select Honda hybrid models. Manufactured to strict specifications, it delivers reliable cranking power while withstanding the unique demands of hybrid vehicle starting systems.
Key Features
-
Precision-engineered for optimal performance and long service life
-
Suits 12V systems, 9-tooth pinion gear, CCW rotation
-
High-quality Mitsuba-style construction
-
Voltage drop protection advice included to prevent solenoid contact damage
-
New (not remanufactured) unit for consistent reliability
Technical Specifications
-
Flange Diameter: 75mm
-
Mount Centres: 110mm
-
Mount Hole Diameter: 11.5mm
-
Nose Cone Length: 70mm
-
Overall Length: 204mm
-
Pinion at Rest: 39mm
-
Pinion Diameter: 30mm
-
Power Rating: 1.0kW
-
Starter Mount Type: 2-Hole
-
Clutch Type: Dry
-
OEM Reference: SM-71003-PO
-
Weight: 2.62kg
Compatible Vehicles
-
Honda Civic FD3 VIII IMA – 1.3L LDA2 SOHC 8v Hybrid (Auto) [01/06 – 12/12]
-
Honda Civic FD3 VIII IMA – 1.3L LDA2 SOHC 8v Hybrid (Auto) [01/10 – 02/12]
-
Honda Civic / Civic Ferio ES9 VII IMA – 1.3L LDA1 SOHC 8v Hybrid (Auto) [10/03 – 09/05]
-
Honda Fit / Jazz GP1 III Hybrid – 1.3L LDA3 SOHC 8v Hybrid (Auto) [04/11 On]
-
Honda Insight ZE2 IMA – 1.3L LDA3 SOHC 8v Hybrid (Auto) [04/09 On]
Important Installation Note
Voltage drop to the starter can cause the solenoid contacts to chatter and burn. Always check battery condition and cable integrity before installing a new starter motor.
